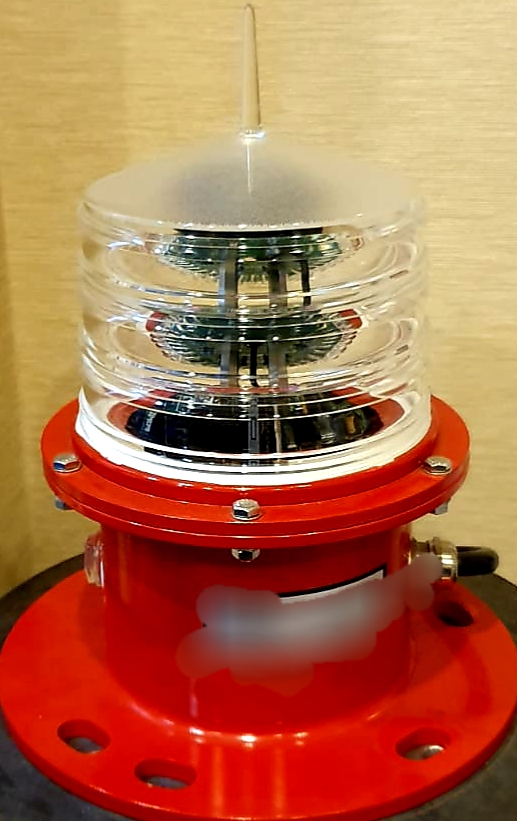

WM-CL150A LED marine lantern for use with communication-linked applications.
Main Specifications
| Operating Voltage: | : | 12V nominal |
| Range | : | from 4nm up to 6.5nm @ T=0.74 |
| Special Features | : | Built-in GPS Receiver Module Built-in GSM Transmission Module Incorporating WM-RTU2000 Data Tx/Rx Incorporating WM-AIS-2000 AtoN module |
| Environmental Temperature | : | -30°C ~ +70°C |
| Relative humidity | : | 100% (Condensing) |
| Typical Consumption | : | GPS/GSM Modules ~ 150mA (max) AIS AtoN @ 0.5Ah/Day (Type 1) |
| Transmission options | : | GSM-GPRS, VHF, Satellite, AIS AtoN |
| Electricity/Light efficiency | : | >25cd/W |
| Vertical Divergence | : | up to 10° (at 50% Peak Intensity) |
| Horizontal light distribution | : | >85% |
| Color | : | Red, Green, Yellow, White |
| Reverse polarity protection | : | Included, built-in |
| Lens Material | : | UV-stabilised, Acrylic |
| Lens Material | : | Acrylic UV-stabilized |
| Base Material | : | Marine-grade, Anodised Aluminium Alloy |
| Bird deterent | : | Integral bird spike (Optional: Additional Stainless steel bird spikes) |
| Ingress Protection | : | IP68 (Fully sealed) |

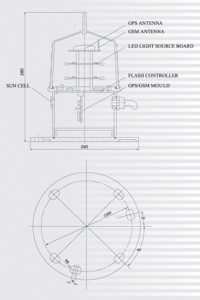

| Mounting/ Installation | : | * 3 X 16mm holes on 200mm P.C.D. |
