The WM-L350C high intensity LED beacon is primarily designed to be deployed as a long-range beacon for lightbeacon or lighthouse applications. The effective range is typically 18 nautical miles @ T=0.74 (or in excess of 50,000 cds) but is capable of achieving beyond and up to 24 nautical miles.

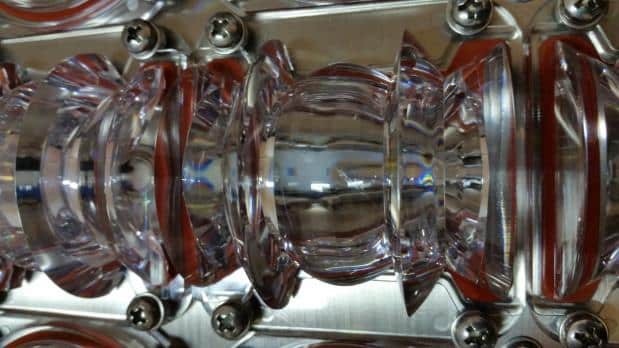

WM-L350C uses a special customised multiple-chipset LED light source (high intensity powerful light source within a single component assembly), coupled individually with a WM-patented lens optic for high efficiency light projection. The configuration is completely flexible to suit end-user’s unique requirement of luminous range.

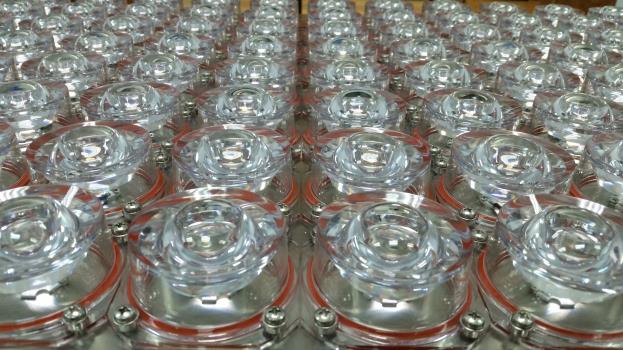

WM-L350C high intensity long-range LED beacon housing is constructed of corrosion-resistant, cast aluminium alloy material that holds an array of toughened, WM-patent designed, UV-stabilized, high precision-molded acrylic fresnel lens ensure minimum variation in output intensities. Lantern housing with UV-stabilized acrylic cover and be able to withstand high temperature outdoor exposure.
The WM-L350C never needs to be opened for servicing and maintenance because the light is factory sealed to IP68 and with no moving parts and lamps to be replaced. The WM-350C can be an omnidirectional or directional (sectored) light beacon.
The heart of the WM-L350C is the intelligent digital controller module accepts a wide range of input voltages. Essentially for LED technology, it regulates and maintained constant distribution of current to each tier and sub-groupings of LED array. Precision controlled to ensure the LEDs are operated and produces constant intensity with highest efficiency.
Flash characters are programmable via an InfraRed programmer unit (SYD-1 MASTER). Up to 256 preprogrammed flash codes are available and other commands available are FORCING ON / OFF, RESTORE to PHOTOCELL operation and BEACON ADDRESS (for telemetry purposes).
Telemetry tap-off / Communication with the WM-L350C high intensity long-range LED beacon is done via RS485/RS232 serial communication leads (provided upon request). This feature applies to all WM’s LED light models.
Technical Specifications
| INPUT VOLTAGE | : | 12V/24V/48VDC or AC Mains Supply |
| INPUT PROTECTION | : | Switch mode Regulated |
| LED array(s) lifespan | : | 100,000 hrs (continuous operation) |
| Beam spread | : | Omnidirectional (360°) or Directional (sectored) |
| Colours available | : | Red / Green / White / Yellow |
| POWER CONSUMPTION | : | typically 48 watts per High Intensity LED array |
| OUTPUT INTENSITIES | : | 5-steps programmable by IR programmer (optional) |
| REVERSED POLARITY PROTECTION | : | Yes |
| LIGHTNING PROTECTION | : | Yes (built-in) |
| FLASH CHARACTERS | : | up to 256 preprogrammed, user-selectable via InfraRed programmer unit (SYD-1) |
| DAYLIGHT SENSITIVITY | : | 300 lux ± 50 lux 5-steps programmable by IR programmer (optional) |
| TEMPERATURE RANGE | : | -30°C to +70°C |
| RELATIVE HUMIDITY | : | 100% (condensing) |
| VERTICAL DIVERGENCE | : | 2.5° |
| HORIZONTAL LIGHT DISTRIBUTION | : | >90% (within 10%) |
| SYNCHRONISATION | : | Hard-wired / Wireless (optional) |
| COMMS INTERFACE | : | RS232/RS485 (optional) |
| DIMENSIONS & WEIGHT | : | Please refers to GA drawing of WM-L350C (different tiers configuration) |
| MOUNTINGS | : | 4x dia. 14mm holes on 200mm PCD |
| LIFESPAN EXPECTANCY | : | 15 years |
| INGRESSION PROTECTION | : | IP68 |
| ATTESTING REFERENCES | : | CE (EMC), SGS, SIMT; in full compliance with IALA Recommendations |
