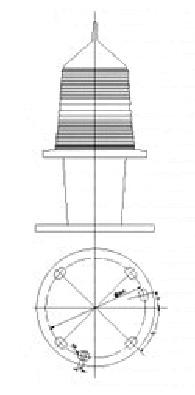

WM-ML155 Lantern is composed of plastic Fresnel lens, plastic base, 6-place electronic flasher/lampchanger and high-efficiency halogen lamp.
Using high-performance, pre-focal halogen lamp as the light source, the lantern is unique in terms of precision of focal position and high utilization of light power, with light intensity 20% higher than navigational laterns using ordinary incandescent lamps.
Users can have an option to choose Lantern with Cast Aluminium Alloy Lantern Base.
WM-ML155 lantern can be used for marine buoys and fixed beacons.
Specifications
Operating Voltage:
:
12V DC
Voltage Range
:
10V-36V
Flash rhythm
:
IALA256
Output Power
:
150W
Serial Communication interface
:
RS232/RS485 (Optional)
Vertical divergence
:
±10° – 12°
Dark current
:
<3mA
Environment temperature
:
-25°C-65°C
Installation
:
4-16mm holes on 200mm P.C.D
Weight
:
3.5kg
