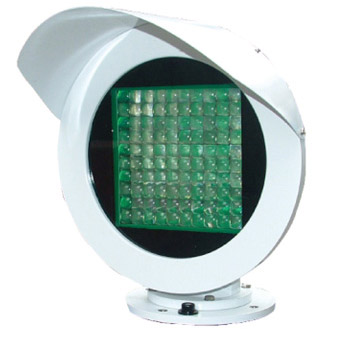

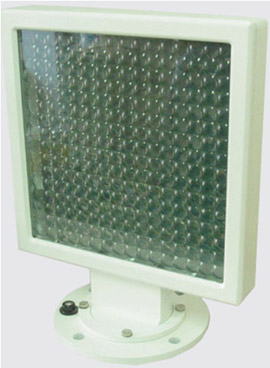

WM-RL2000 Flat Panel LED Range Lantern Singapore

WM-RL2000 Flat Panel LED Range Lantern consists of a flat LED square array, special flat-surface lens optic with an aluminum alloy encasement and an advanced designed microcomputer control circuitry.

As compared with the conventional incandescent-lamp range lantern, this flat panel WM-RL2000 LED Range Lantern possesses many improved features like more efficient energy-saving, higher output intensity and more even light beam distribution.

The effective intensity of multiple units (clustered) can produce up to 180,000 candelas (nominal range of 21 nautical miles), utilizing a much lower power consumption.

Each range lantern weighs 6.5-kg and has an average lifespan of 100,000 hours (lifespan of LED). On the contrary, a similar traditional range lantern consumes about power of 150W and weighs at least 30kg, with only a lifespan of 6000 hours (lifespan of incandescent lamps).

WM-RL2000 Flat Panel Range Lantern is a stand-alone integrated light assembly, which has the flexibility to be customized for different configurations and requirements.

This LED Range Lantern is primarily designed for use as a directional, transit / leading light for guiding mariners into the entrance of a narrow or meandrous navigational channels and inland waterways, with upmost safety and efficiency.

Specifications

Input Voltage	:	10-30VDC / AC powered
Power Consumption	:	10W-50W
Range	:	10 – 25 nm
Operating Temperature	:	-25°C to +60°C
Outside Dimension	:	400 x 400 x 50mm (square)
Protection Level	:	IP68
Mounting details	:	4-?16 – 195mm P.C.D.
Weight	:	6.5kg
